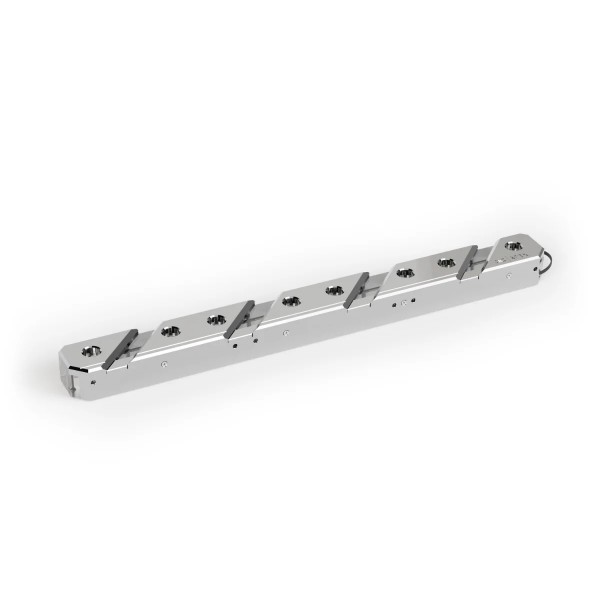

Alphacool Apex Manifold 360mm (14678)

The Alphacool Apex Manifold 360mm is a 360 mm water-cooling manifold with four chambers and eight G1/4 inlet and outlet ports. It supports the connection of at least three components and takes hard tubes or soft tubes through G1/4 fittings. It mounts to a radiator, to the PCIe bracket or next to other water-cooling components.

Properties

Thread

8x G1/4 brass thread

Chambers

Four

Size (L x W x H)

360.00 x 36.00 x 24.00 mm

Material

Acrylic, chrome-plated brass elements

Lighting

18 digital aRGB LEDs, 5V

Color

Chrome | Transparent

Chambers and ports

The four chambers and eight ports offer versatile options for integrating various components into the water-cooling loop. This allows the tubes to be routed particularly straight and easily. Thanks to its numerous connection options, the manifold enables especially clean tubing runs and creates a neat, organized appearance inside the system. Alphacool calls it the ideal solution for a visually unique custom water-cooling build, giving the entire custom loop an exceptional look.

Apex design

The manifold stands out with what Alphacool calls high-quality brass threads, which effectively help prevent the risk of leaks caused by cracking. The distinctive Apex design is a transparent body of clear acrylic featuring chrome-plated brass elements. Alphacool says the manifold not only improves the structure of the loop, but also elevates the overall aesthetics of the water-cooling system to a new level.

Lighting

The integrated aRGB lighting can be controlled via a digital aRGB header on the motherboard. Optionally it runs via the Alphacool Aurora Eiscontrol aRGB Controller (item no. 15360).

Mounting

Thanks to its various mounting options, the manifold can be installed flexibly in a wide range of positions inside the case. It can be mounted directly to a radiator, both with and without fans. In addition, it sits next to water-cooling components such as tube reservoirs. This is made possible by an extensive mounting kit, and mounting to the PCIe bracket can also be achieved using the included kit. On the bracket the manifold is either front-facing or rotated by 90°. That way it can be optimally adapted to the system layout and integrated even more effectively into the loop.

What the loop needs

Every port in use takes one G1/4 fitting from our fittings section, and no fittings are in the box. Two G1/4 plugs and a plug tool are included for ports that stay closed.

Technical data

In the box

• 1x Apex Manifold 360mm
• 4x M3x6 Screw
• 2x Mounting Bracket 1
• 6x M3x12 Screw
• 9x M3x5mm Screw
• 1x Mounting Bracket 2
• 1x PCIe Bracket 1
• 1x PCIe Bracket 2
• 1x ARGB Adapter
• 2x G1/4 Plug
• 1x Plug tool
