Details
The ATP-MB is a blue adhesive thermal pad, 25 x 25 mm and 6 mm thick, with a thermal conductivity of 4.0 W/m-K. It is made to carry heat from a motherboard to the computer case: the thick pad fills the gap between the board and the case so the case can work as a heat spreader.
Properties
- Type
- Adhesive thermal pad
- Size
- 25 x 25 mm
- Thickness
- 6 mm
- Thermal conductivity
- 4.0 W/m-K
- Color
- Blue
- Pieces in the pack
- 1
Motherboard to case
Hot spots on a motherboard can pass their heat into the case panel through this pad. At 6 mm thick it bridges a wide gap that a thin pad cannot fill.
Adhesive
The pad sticks in place, so it stays where you put it while you close the case.
Before you fit it
Clean both surfaces with isopropyl alcohol and let them dry, then press the pad on firmly. Check that the pad touches only the area you want to cool and that the case closes without forcing it.
Technical data
| Part number | ATP-MB |
| Dimensions | 25 mm x 25 mm x 6 mm |
| Thermal conductivity | 4.0 W/m-K |
| Color | Blue |
Notes

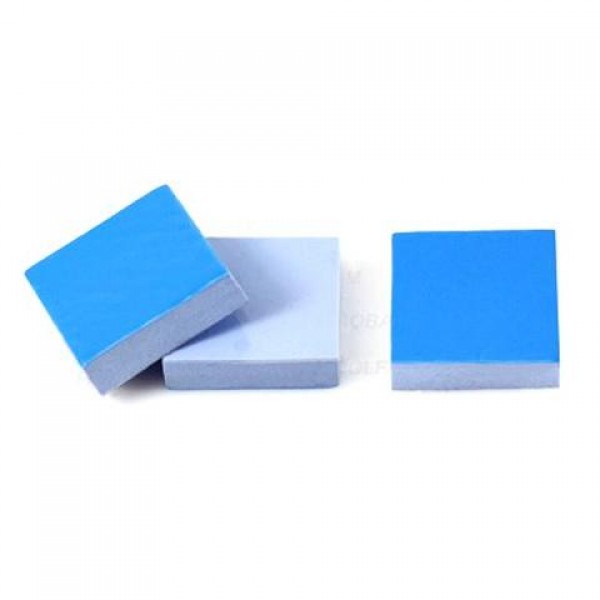

- The picture shows more than one pad; this listing is for one pad.
In the box
- 1x Adhesive Thermal Pad for Motherboard
