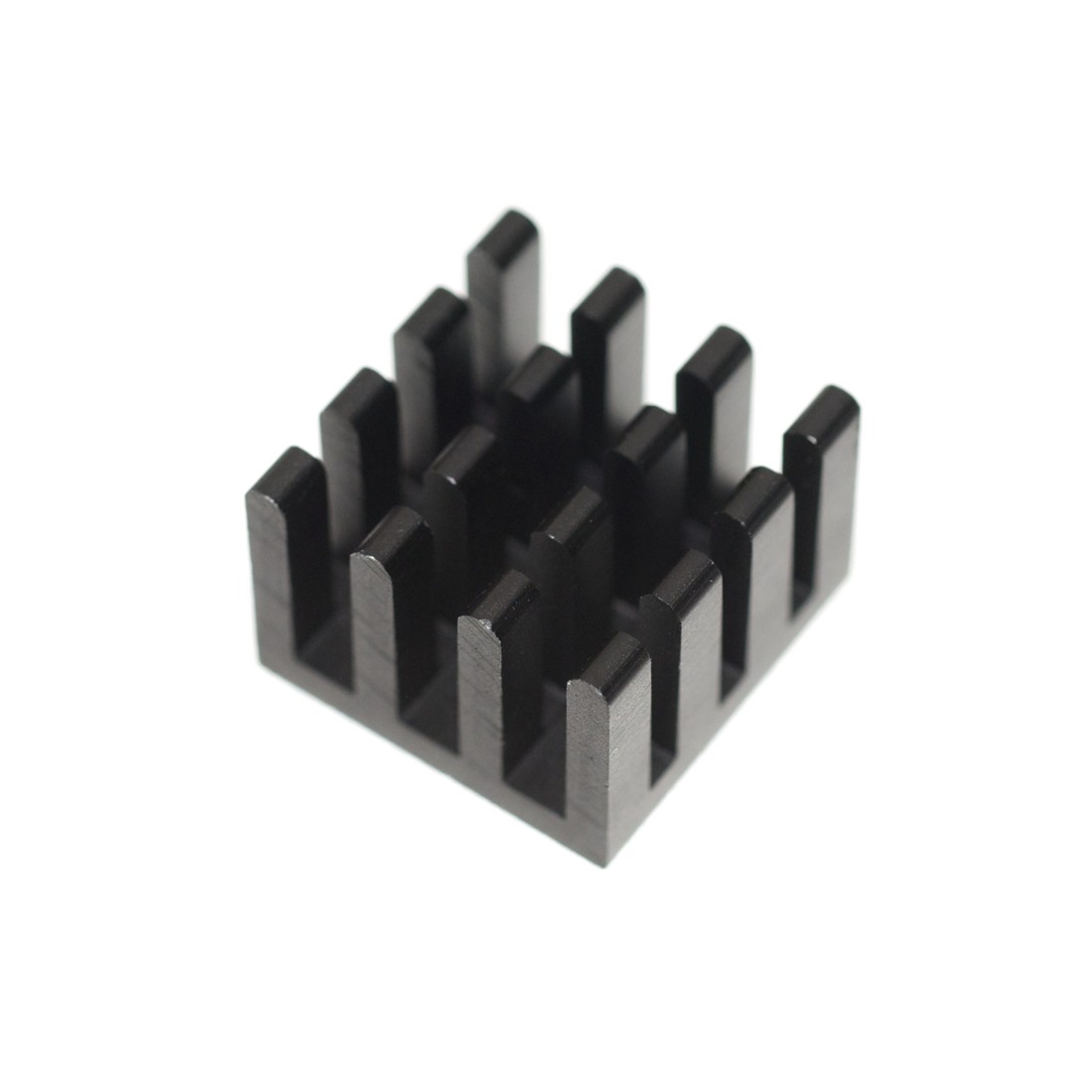

This is an Aavid Thermalloy premium black heat sink of 14 x 14 x 10 mm with 3M 8810 thermally conductive adhesive transfer tape on the back. Peel it and stick it on: the small aluminum pin fin heat sink cools a chip without clips or screws, and it works with Raspberry Pi boards.
Properties
- Type
- Stick-on pin fin heat sink
- Size
- 14 x 14 mm, 10 mm tall
- Material
- Aluminum, black
- Adhesive
- 3M 8810 thermally conductive adhesive transfer tape
- Pieces in the pack
- 1
Pin fins for airflow from any side
The fins are cut across into square pins, so air can pass through the heat sink from any direction. That suits small boards where the airflow is weak or comes from the side.
3M 8810 adhesive on the back
3M 8810 is a thermally conductive adhesive transfer tape. It holds the heat sink on the chip and carries heat into it at the same time, so no clip, screw or separate thermal paste is needed.
Raspberry Pi and other small boards
The 14 x 14 mm footprint works on Raspberry Pi boards and on other small chips of about that size.
Before you stick it on
Clean the top of the chip with isopropyl alcohol and let it dry, then press the heat sink on firmly for a few seconds. The tape is made to stay, so place it right the first time.
Technical data
| Part number | 3M-8810-14 |
| Heat sink | Aavid Thermalloy |
| Dimensions | 14 mm x 14 mm x 10 mm |
| Material | Aluminum |
| Color | Black |
| Adhesive | 3M 8810 thermally conductive adhesive transfer tape |
In the box
- 1x Aavid Thermalloy Premium Black Heat Sink 14mm x 14mm x 10mm
